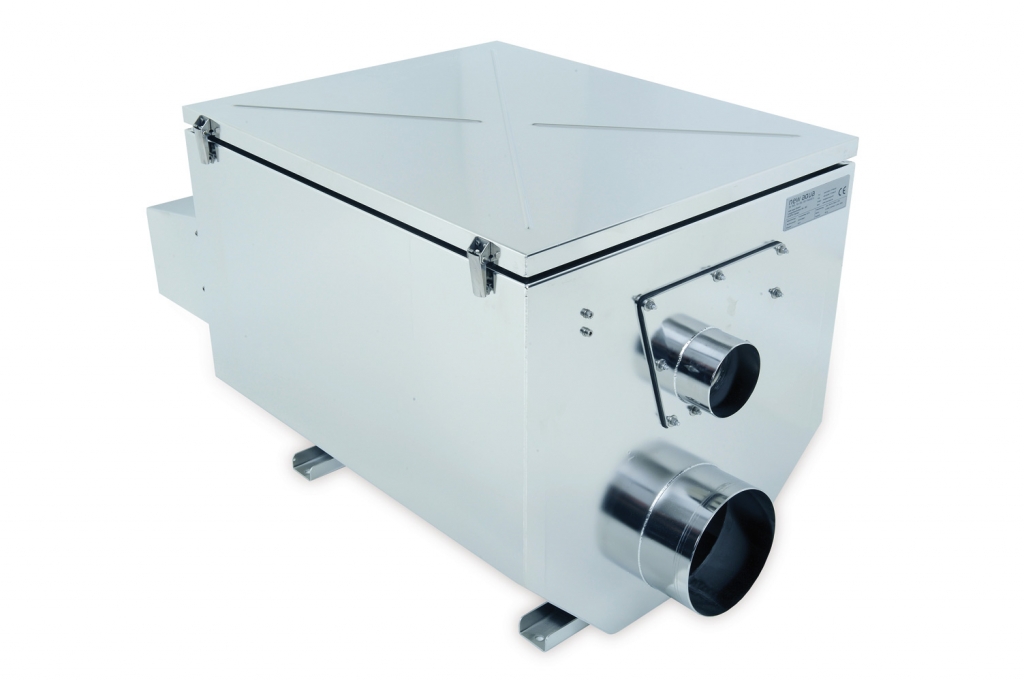

Drum Filter D510
incl. control system and high-pressure pump
Article-no.: 214000
Drum Filter D510 is a top-class mechanical filter.
A modern and complete filter system can be assembled with optional accessories such as the base frame, collecting tank and bio-chamber.
The flow rate is largely dependent on the screen size and the degree of water contamination.
Flow rate max. 40.000l/h, Filter Panel 60µm, pollution load TSS 10mg/l.
| Material: | stainless steel 1.4301 |
| Dimensions LxWxH: | approx 1.090 x 650 x 680mm |
| Flow rate: | max. 40.000l/h with TSS 10mg/l |
| Filter cloth: | 4x filter panels 60µm |
| Inlet: | DN200 / 200mm |
| Outlet: | DN200 / 200mm |
| Waste water: | DN100 / 110mm |
| Weight: | approx 90kg |
| Installation variant: | gravity or pumped |
| Height over water: | approx 195mm (gravity) |
Technical Data – Control Cabinet
| Control system: | new aqua Control C1000 |
| Dimensions WxHxD: | approx. 330 x 260 x 145mm |
| Supply voltage: | 230 VAC |
Technical Data – Gear motor
| Manufacturer: | Getriebebau NORD |
| Power: | 0,12 kW |
| Supply voltage: | 230 VAC |
Technical Data – High-Pressure Pump
| Manufacturer: | EBARA |
| Connection: | 1″ / PVC 32mm |
| Supply voltage: | 230 VAC |
new aqua technical drawing – Drum Filter D510
new aqua technical drawing – Collecting Tank SB510
