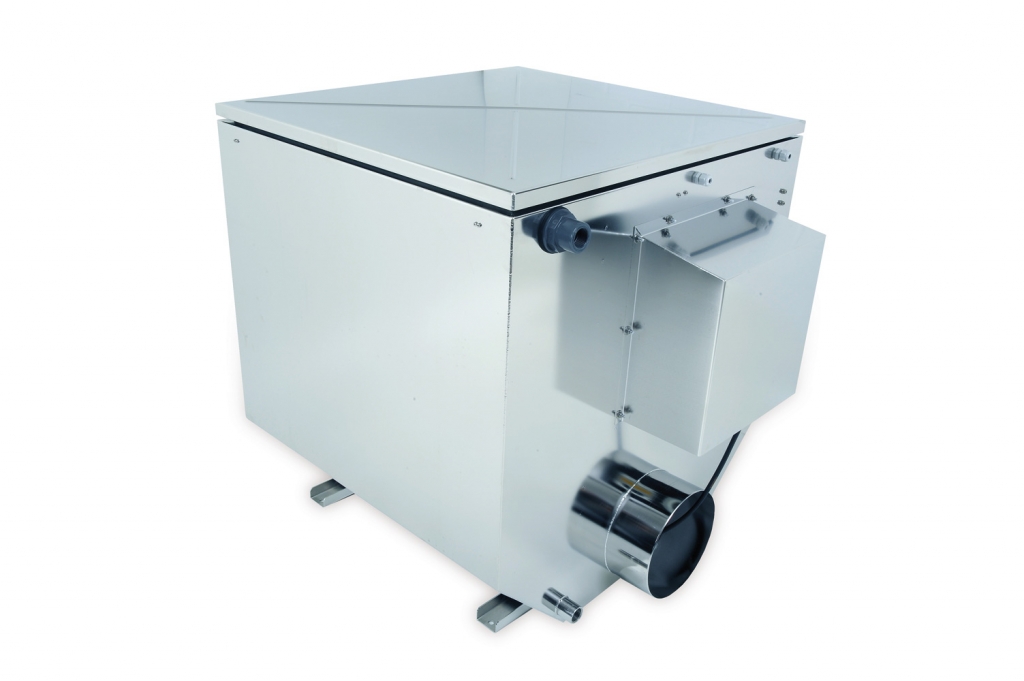

Drum Filter D810
incl. control system and high-pressure pump
Article-no.: 214020
Drum Filter D810 is a top-class mechanical filter.
This filter, assembled with an optional accessory, such as the collecting tank, is suitable for large ponds.
The flow rate is largely dependent on the screen size and the degree of water contamination.
Flow rate max. 60.000l/h, Filter Panel 60µm, pollution load TSS 10mg/l.
Material: | stainless steel 1.4301 |
Dimensions LxWxH: | approx 1.140 x 910 x 990mm |
Flow rate: | max. 60.000l/h with TSS 10mg/l |
Filter cloth: | 6x filter panels 60µm |
Inlet: | DN250 / 250mm |
Outlet: | DN250 / 250mm |
Waste water: | DN100 / 110mm |
Weight: | approx 148kg |
Installation variant: | gravity or pumped |
Height over water: | approx 240mm (gravity) |
Technical Data – Control Cabinet
Control system: | new aqua Control C1000 |
Dimensions WxHxD: | approx 330 x 260 x 145mm |
Supply voltage: | 380-400 VAC |
Technical Data – Gear Motor
Manufacturer: | Getriebebau NORD |
Power: | 0,18 kW |
Supply Voltage: | 380-400 VAC |
Technical Data – High-Pressure Pump
Manufacturer: | EBARA |
Connection: | 1″ female thread |
Supply voltage: | 380-400 VAC |
new aqua technical drawing – Drum Filter D810
new aqua technical drawing – Collecting Tank SB810
new aqua plans – Drum Filter D810
