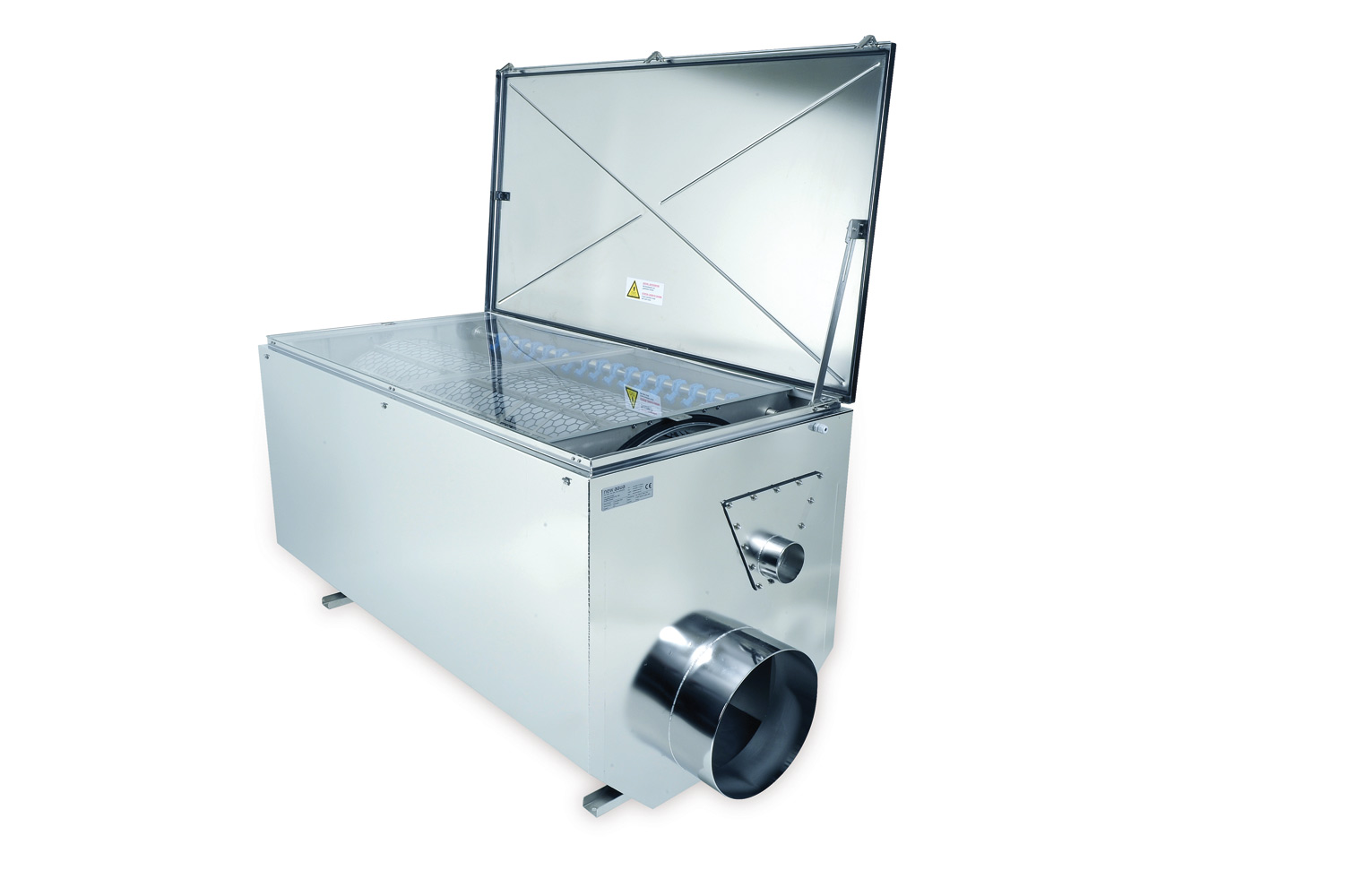

Drum Filter D830
incl. control system and high-pressure pump
Article-no.: 214040
Drum Filter D830 is a top-class mechanical filter.
The flow rate is largely dependent on the screen size and the degree of contamination of the water.
Flow rate max. 180.000l/h, Filter Panel 60µm, pollution load TSS 10mg/l.
| Material: | stainless steel 1.4301 |
| Dimensions LxWxH: | approx 2.080 x 910 x 990mm |
| Flow rate: | max. 180.000l/h with TSS 10mg/l |
| Filter cloth: | 18x filter panel 60µm |
| Inlet: | DN400 / 400mm |
| Outlet: | DN400 / 400m |
| Waste water: | DN100 / 110mm |
| Weight: | approx 233kg |
| Installation variant: | gravity or pumped |
| Height over water: | approx 240mm (gravity) |
Technical Data – Control Cabinet
| Control system: | new aqua Control C1000 |
| Dimensions WxHxD: | approx 330 x 260 x 145mm |
| Supply voltage: | 380-400 VAC |
Technical Data – Gear motor
| Manufacturer: | Getriebebau NORD |
| Power: | 0,18 kW |
| Supply voltage: | 380-400 VAC |
Technical Data – High-Pressure Pump
| Manufacturer: | EBARA |
| Connection: | 1 1/4″ female thread |
| Supply voltage: | 380-400 VAC |
